Thursday, 14 March 2013

Creating a new TeamMentor test site using TeamCity, GitHub and Azure

Serge just asked me to create a new TeamMentor (TM) website for him using a particular TM library, so here are the steps I took (note: some of this will be automated in the next TM release)

In Azure ....

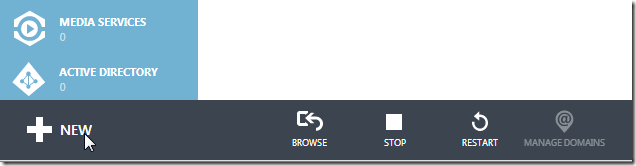

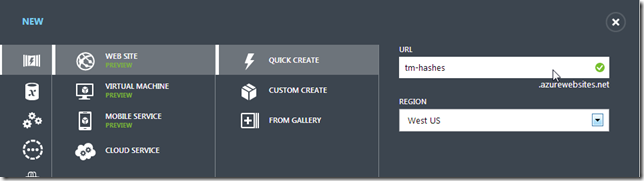

It all started by going into Azure and creating a new website:


In this case called tm-hashes


in a couple secs it was available

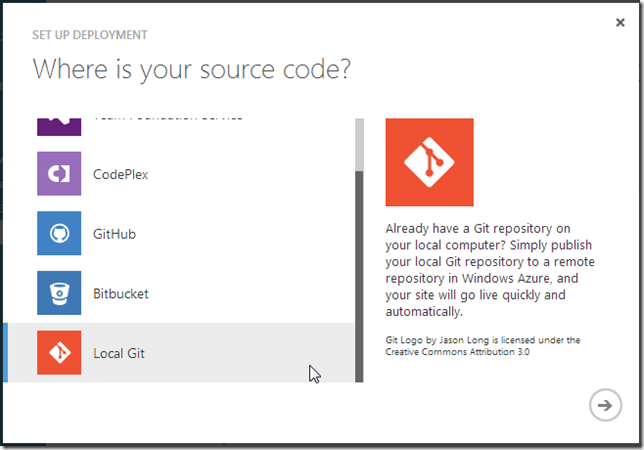

next I set-up git publishing:


using  ‘Local Git’ since that works well with TeamCity and doesn't require that Azure is given pull privileges into the target repo:

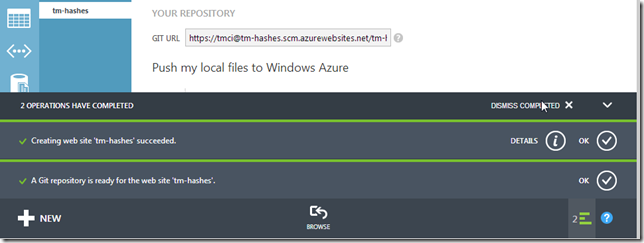

Azure worked for a bit, and after a couple secs I had:


In TeamCity ...

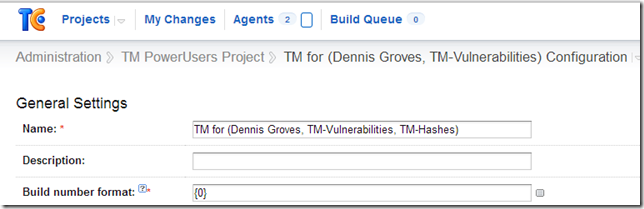

Next, in the TeamCity server, to make it easier on next deployments, I added this site to one of the builds that already pushes other sites into Azure:


Specifically I added another build-step similar to the ones already there for tm-vulnerabilities and tm-DennisGroves

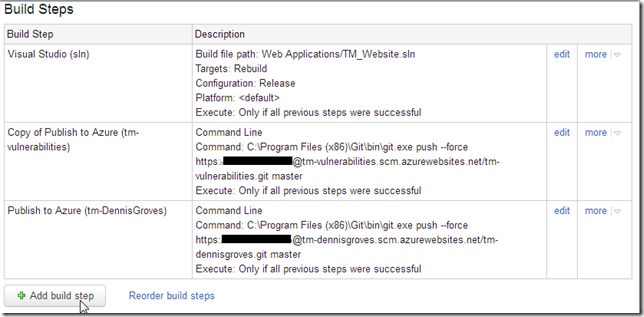

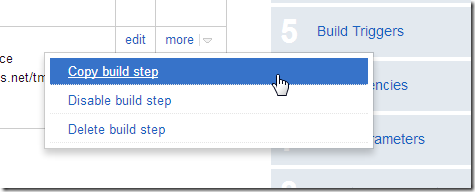

The easiest way to do it, was to create a copy of one of the existing steps:

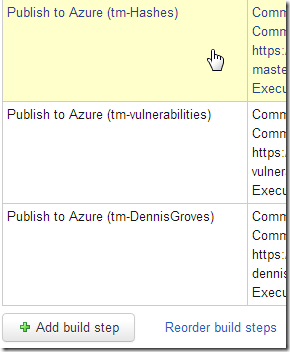

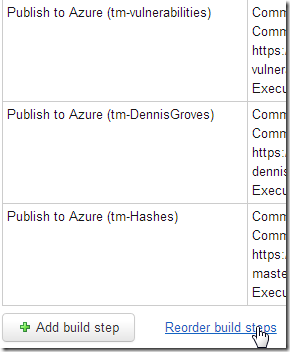

After editing the 'copied build step', called 'Publish to Azure (tm-Hashes)',  I quickly reordered the build steps

from: image  to:  image

Next, I clicked on Run:


in order to trigger a TeamCity build:


That build will:

  • do a git pull from the latest version of the TM code (currently at 3.3 RC3.01),
  • build the visualstudio main project,
  • and push to Azure

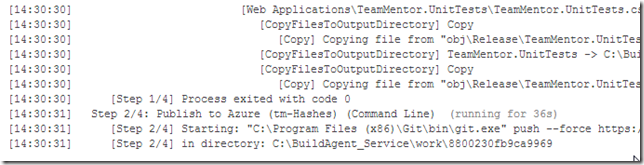

Here are the bulid logs during the 'push to Azure' step:

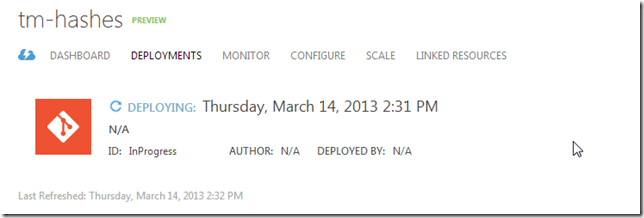

At this moment the Azure admin page for the tm-hashes site, will show a ‘Deploying’ message


which becomes 'Active Deployment' once it is completed:


One of the nice hacks the Azure team did with their git implementation is to provide good messages/info in the git data sent back on pushes (the lines in dark-orange below where created by Azure):



Once the push in complete, we can browse the Azure site:

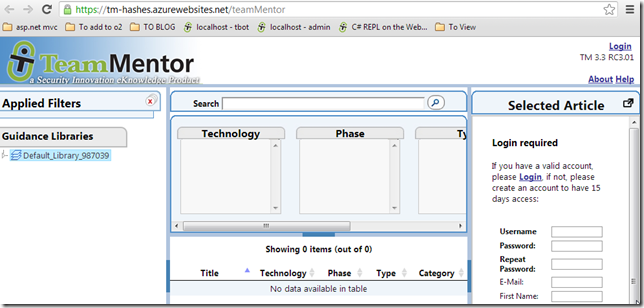

And see an empty TeamMentor installation:


In TM Control panel using GitHub zip file ...

The final step is to add the library that Serge wants (note: for this example I’m going to install the library via drag and drop of zip files.)

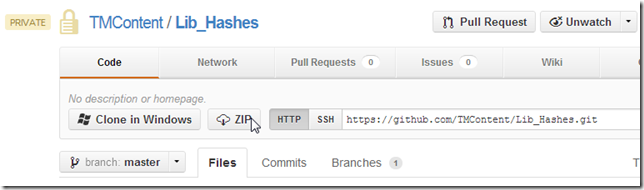

To get the library files, I went to its private Github Repositor, and clicked on the zip button


which downloaded the zip file into my current vm:


back in TeamMentor,

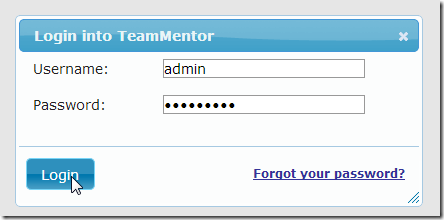

I logged in:


as admin


went to the control panel:

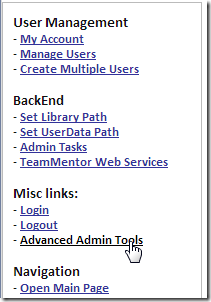

clicked on ‘Advanced Admin Tools’ and ‘Install/Upload Libraries

image image

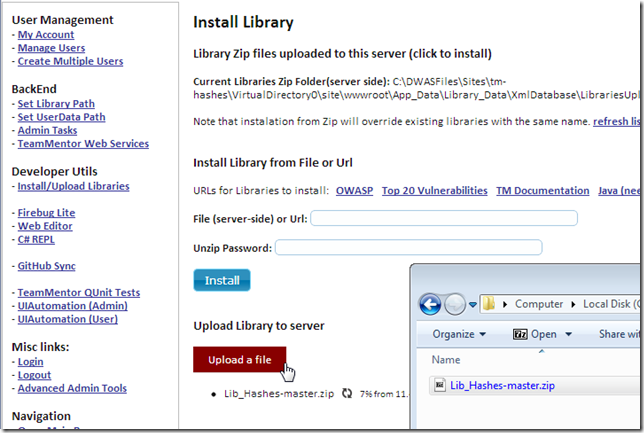

drag-n-dropped the local zip file into the ‘Upload a file’ red box

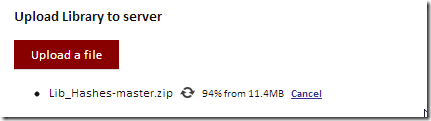

Depending on the network speed, this can take a couple seconds or minutes:


Once the upload was completed,

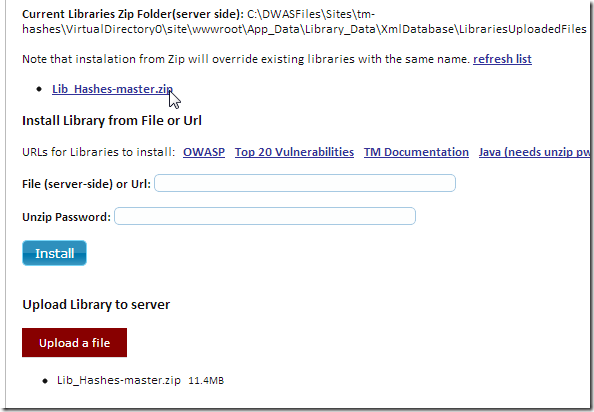

I clicked on the 'Lib_Hashes-master.zip’ link that appeared at the top:

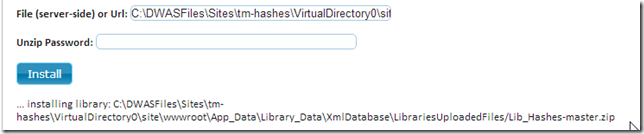

waited a little bit:


and once I saw the success message:


I clicked on Open Main Page

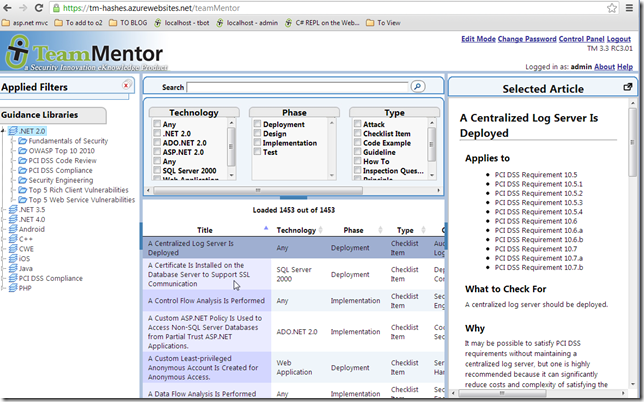

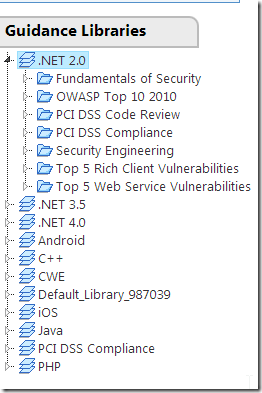

and the main TeamMentor Gui showed the imported libraries:

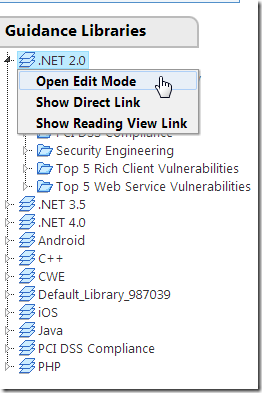

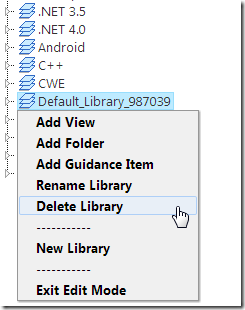

The final step was to remove the original temp library (created by TeamMentor on first install)

image  image image

And finally, I sent Serge an email with the link to his brand new install of TeamMentor :)
