Creating a WebServices Proxy Wrapper for Checkmarx’s CxWebService

Now that we have the an API to create proxies (see Creating an API to create the WebServices Proxy Wrapper classes/asmx files) its time to create the proxy I really need, which is the Checkmarx webservice responsible for (amongst other things) returning security guidance (see Adding O2's CSharp REPL to the Checkmarx main WebService for more details)

Currently I have the latest version of Checkmarx installed on my dev box, which uses the UltraDev web server:

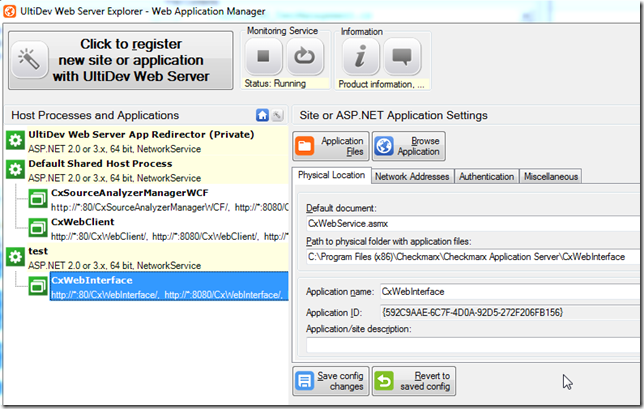

The one we want to wrap is the CxWebService one:

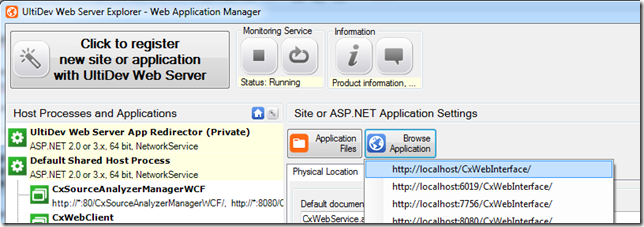

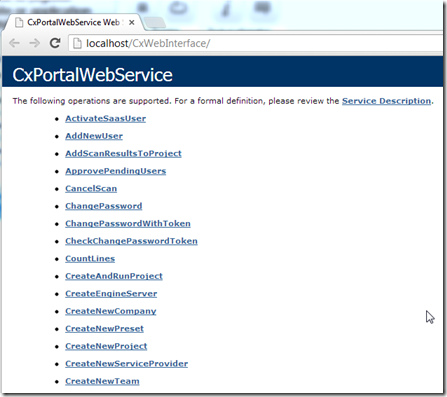

which is available at the http://localhost/CxWebInterface/ address:

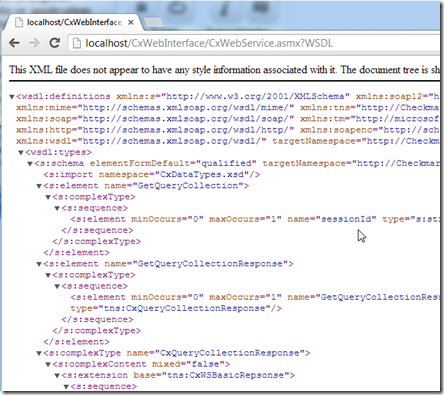

with the wsdl available at: http://localhost/CxWebInterface/CxWebService.asmx?WSDL


There is already an API in the O2.Platform.Scripts that can be used to programmatically create the WSDL, so lets use it :)

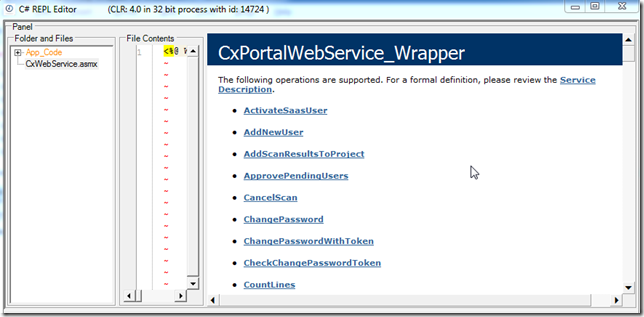

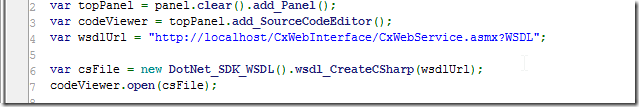

The wsdl is created on line 6, and on line 7 it is shown on a code editor:


Once we have the wsdl we just need to use the API_ASMX_Proxy (described here) to create the proxy class:


In the script above:

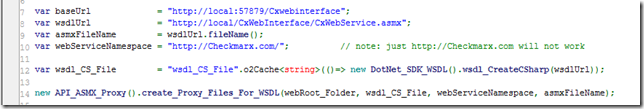

  • lines 2-5    : create a gui with a folder viewer and WebBrowser
  • lines 7-10  : webservice settings and location
  • line 12      : create c# for wsdl file (cached so that it is only done once)
  • line 14      : create proxy files
  • line 16      : refresh folder viewer
  • line 17      : open url in web browser
  • lines 20-22: file imports and extra using reference
After execution this is what my dev Gui looks like (with the script shown above in the middle, and the folderviewer+browser shown at the top):


If we open the CxWebService.asmx we can see the wsdl generation worked:

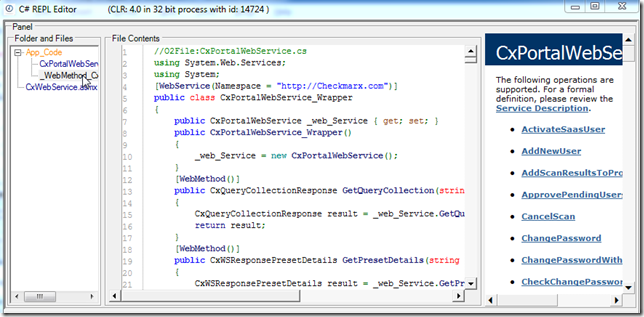

and if we open the _WebMethod_CxPortalWebService.cs file from the App_Code folder, we can see the auto-generated proxy file:


OK, let’s see this in action :)

First a little trick to make sure that all our traffic goes trough Fiddler.

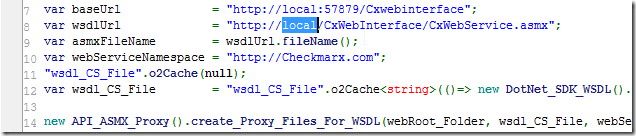

I changed the original WSDL location to the http://local path (which is an extra mapping I have on my drivers\etc\hosts file, that points to 127.0.0.1)


Once that is set, I re executed the script, and had these 4 entries on fiddler:


I then clicked on the CxWebService.asmx link (top right browser window) and chose one method at random (like the CancelScan)

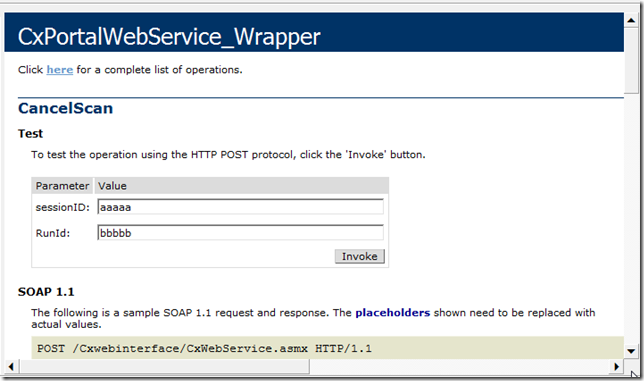

Next I entered some dummy values in the WebServices test GUI


Clicked on Invoke and got this result:


If we go back to Fiddler, we can see two requests:

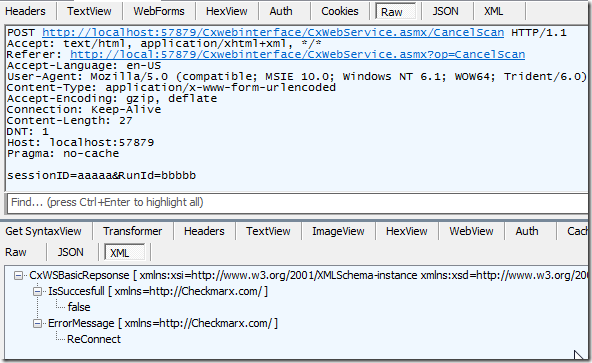

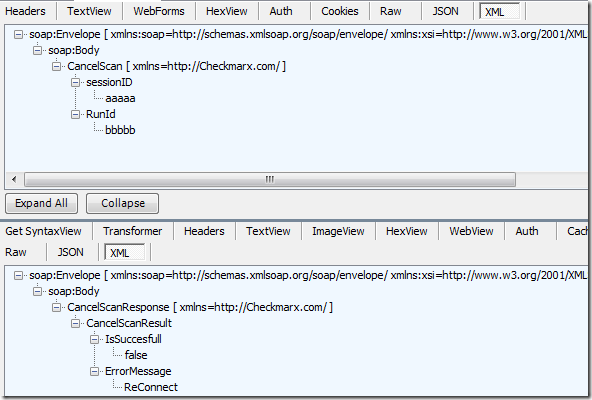

The first is the call to the proxied WebService WebMethod:


the 2nd is the one to the real WebService WebMethod:


Note that this 2nd request was sent using SOAP, so it should be easier to read like this.


so far so good :)

Next let’s try to login using the CxAudit tool (the client side, desktop-running tool):


click on Details:

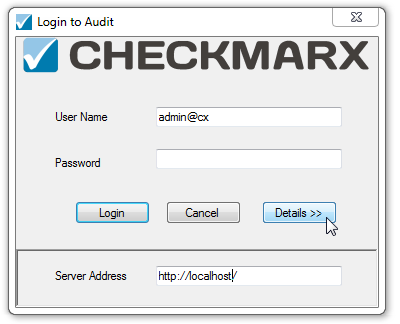

and replace the Server Address with our proxied web services location.

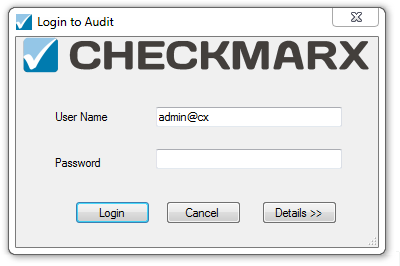

Then enter a password and click on Login

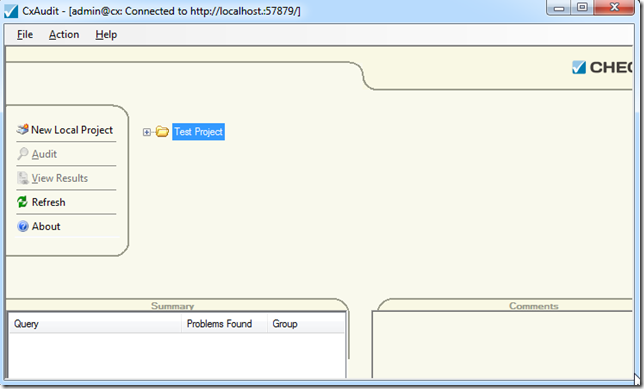

And we are logged in :)


with fiddler showing a pair of calls for each request made by CxAudit


which for reference, the first pair  was to the Login WebService method:

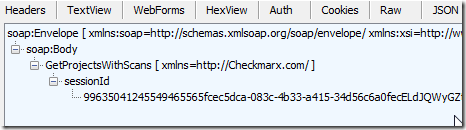

and the 2nd one to GetProjectsWithScans

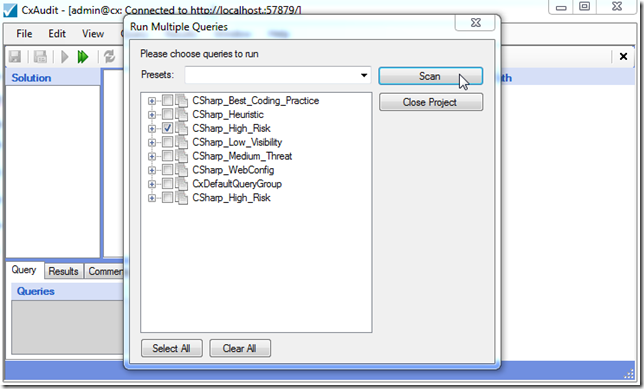

And just to make sure all works ok, I selected a project, chose a rule pack, and clicked Scan


which generated a number of paired-up web services requests:


with the results showing up ok :)

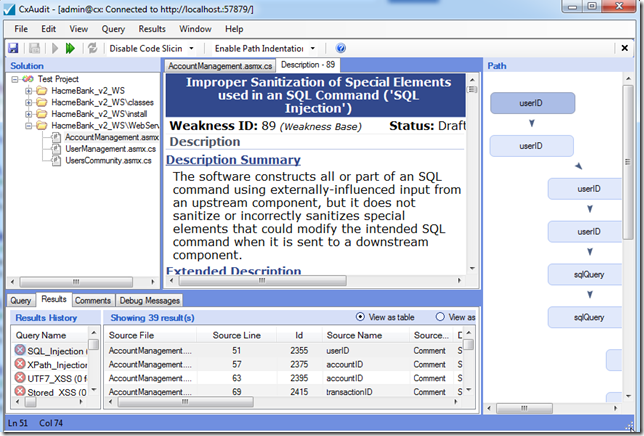

 If we now chose an Query Name and click on the Show Description menu option, we can see the default CheckMarx guidance:


and if we look at fiddler we will have 2 new web services requests

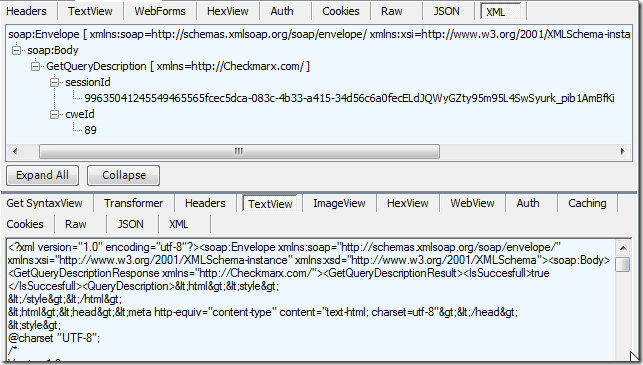

to GetQueryDescription:


which is the method we need to change at our web services proxy (and replace with TeamMentor Guidance)

but that is the topic for the next post …


Tip: Using VisualStudio to debug and develop the proxied code:

To debug the generated code (and in case you prefer VisualStudio development), you can open the web root in visualStudio:


set breakpoints:

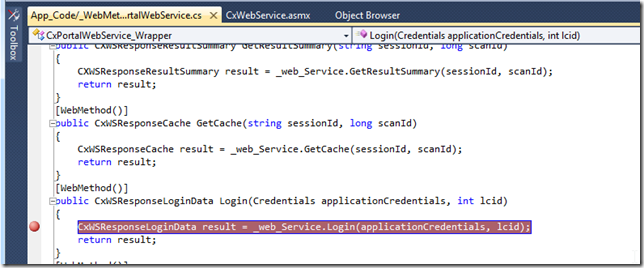

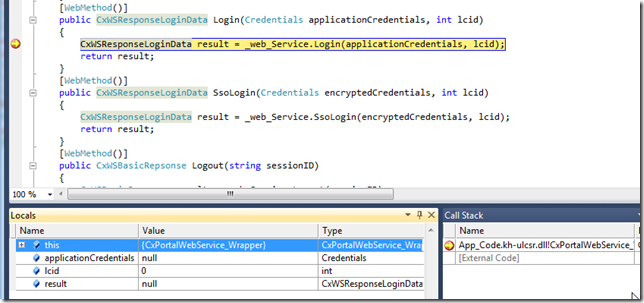

and debug/write the code right here:


I used this to quickly debug an issue I had.

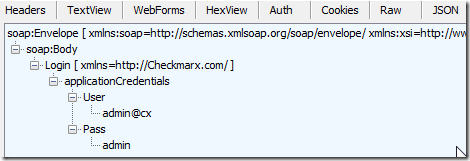

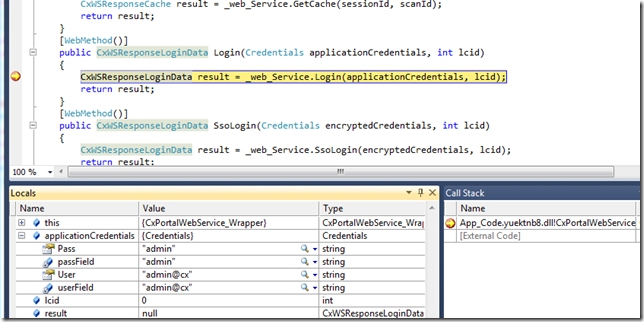

Notice the difference between the request above and this one:


Basically the applicationCredentials object was not being populated....

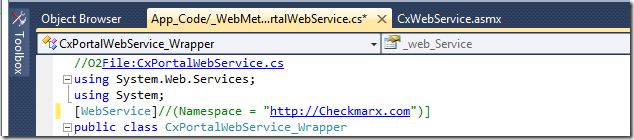

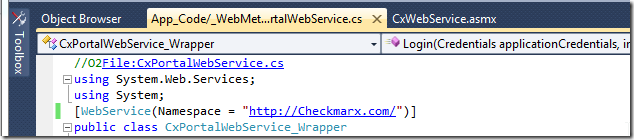

This happened because there was missing / in the Namepace

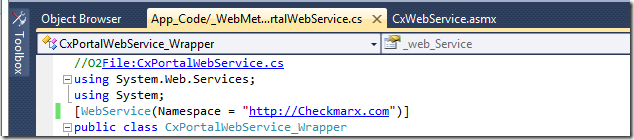

i.e. it was:


and it needs to be:


this actually feels like a little bug inside the .Net Framework, since if we remove the Namespace:

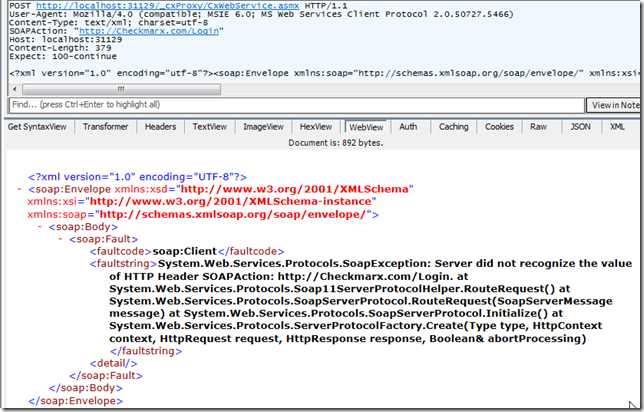

we get this error:


and no hit on the Login breakpoint

Anyway, the solution is to rebuild the proxied files with the fix
